Intel® Integrated Server Platform S5000PAL

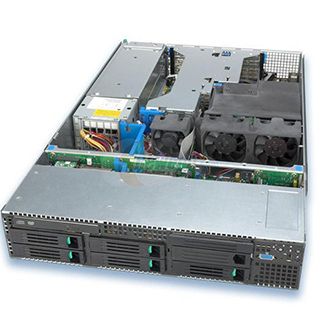

Intel® Integrated Server Platform S5000PAL (Alcolu) And SR2500 (2U) Chassis - DDR2-533/667 FB DIMM SATA/SAS. Ducting, Cables, Slimline Tray, Low Profile Riser, Full Height PCI-X Riser, SATA/SAS Backplane, Drive Carriers & Standard Front Control Panel.



Specifications: Model
• Brand: Intel
• Model: SR2500ALBRP

CPU Supported
• CPU Type: Dual Intel Xeon
• FSB: 1333/1066 MHz

Chipset
• North Bridge: Intel 5000P

Memory Supported
• Memory Slots: 8 x 240Pin
• Max Memory Supported: 32GB
• Memory Type Supported: DDRII 667/533
• ECC Supported
• Registered: FB-DIMM

Graphics
• GPU/VPU: ATI with 16MB memory

Expansion Slots
• PCI Express
• 2 x Low Profile PCI Express x8
• 1 x I/O Expansion Module Slot (PCI Express x4)

Communications
• First LAN: 2 x Intel PRO/1000

Expansion Bays
• 3.5" Bays: 5 x 3.5" hot-swap SAS/SATA Flex-bay

Power Supply
• Max. Power: 750-watt, dual-line cord 1+1 PFC

Features
• HDD Interface:
• SATA/SAS Passive Midplane with hot-swap Backplane

Details
• Form Factor: 2U Rackmount

• Dimensions & Weight: 27.3" x 16.9" x 3.5"
