Intellinet 16-Port Gigabit Ethernet PoE Plus
SKU EQ-="561198"
R8 193.00
In stock: 1 available
1
Product Details
Brand: Intellinet

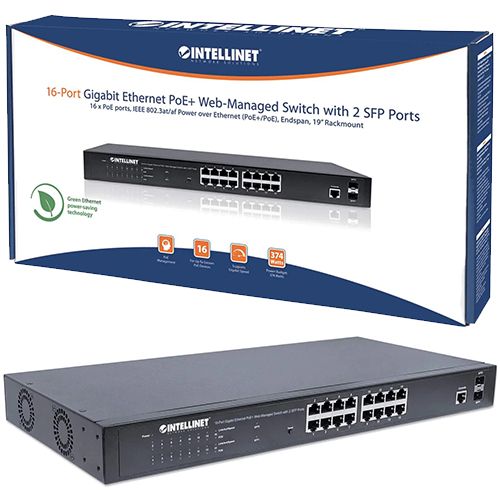

Intellinet 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports - IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 374 W, Endspan, 19" Rackmount, Retail Box, 1 year Limited Warranty
Product Overview:
The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports (561198) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with sixteen Gigabit Ethernet ports, all of which support 802.3at/af Power over Ethernet (PoE/PoE+), this switch can power Wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras and more while delivering network speeds of up to 1,000 Mbps.
Highlights:
• Provides power and data connection for up to 16 PoE network devices
• Save installation cost by delivering data and power over existing network cables
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Two small form-factor pluggable GBIC module slots (SFP)
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• Power output up to 30 watts per port*
• PoE power budget of 374 watts
• 36 Gbps switch fabric
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
• Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• PoE management functions include PoE port settings, priority, power-on delay, scheduled PoE device restart and PoE device monitoring
• The Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic
• SNMP Management and Remote Monitoring (RMON)
• SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
• IPv4/v6 dual protocol
• Supports VLAN (tag-based and port-based)
• Provides IEEE 802.1x port-based security
• Supports link aggregation (trunking)
• Supports bandwidth control per port
• Supports port mirroring
• Supports two types of QoS: port-based and DSCP
• Broadcast storm control with multicast packet rate settings
• 512 kBytes buffer memory
• Supports 8k MAC address entries
• Supports jumbo frames up to 9 kBytes
• Supports Rapid Spanning Tree/Spanning Tree protocol
• Store and forward switching architecture
• Full/half duplex operation
• IEEE 802.3x flow control for full duplex
• Configuration via Web browser, Telnet or SSH
• Remote Reboot/restart
• LEDs for power, link/activity and PoE
• Two high-volume cooling fans ensure perfect ventilation
• Provides power and data connection for up to 16 PoE network devices
• Save installation cost by delivering data and power over existing network cables
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Two small form-factor pluggable GBIC module slots (SFP)
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• Power output up to 30 watts per port*
• PoE power budget of 374 watts
• 36 Gbps switch fabric
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
• Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• PoE management functions include PoE port settings, priority, power-on delay, scheduled PoE device restart and PoE device monitoring
• The Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic
• SNMP Management and Remote Monitoring (RMON)
• SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
• IPv4/v6 dual protocol
• Supports VLAN (tag-based and port-based)
• Provides IEEE 802.1x port-based security
• Supports link aggregation (trunking)
• Supports bandwidth control per port
• Supports port mirroring
• Supports two types of QoS: port-based and DSCP
• Broadcast storm control with multicast packet rate settings
• 512 kBytes buffer memory
• Supports 8k MAC address entries
• Supports jumbo frames up to 9 kBytes
• Supports Rapid Spanning Tree/Spanning Tree protocol
• Store and forward switching architecture
• Full/half duplex operation
• IEEE 802.3x flow control for full duplex
• Configuration via Web browser, Telnet or SSH
• Remote Reboot/restart
• LEDs for power, link/activity and PoE
• Two high-volume cooling fans ensure perfect ventilation
