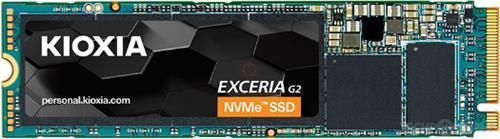

Name: Kioxia Exceria 500GB M.2 PCIe NVMe Solid State
Brand: Kioxia
SKU: EQ-="LRC20Z500GG8"
Price: 710.0 ZAR
Availability: InStock

Kioxia Exceria 500GB M.2 PCIe NVMe Solid State

Product Details

Brand: Kioxia

Kioxia Exceria 500GB M.2 PCIe NVMe Solid State Drive, Retail Box, 1 year warranty

Product Overview

The Kioxia Exceria 500GB M.2 PCIe NVMe SSD offers high-speed storage performance in a compact form factor. With sequential read speeds of up to 2,100 MB/s and write speeds of 1,700 MB/s, it's ideal for boosting your system's responsiveness.

Specifications

•Product code: LRC20Z500GG8

•Description: Kioxia Exceria 500GB M.2 PCIe NVMe Solid State Drive

•Capacity: 500 GB

•Overprovisioning: 46.3 GB / 10.0 %

•Part Number: LRC20Z500GG8

•Sequential Read: 2,100 MB/s

•Sequential Write: 1,700 MB/s

•Random Read: 360,000 IOPS

•Random Write: 400,000 IOPS

•Endurance: 200 TBW

•MTBF: 1.5 Million Hours

•Drive Writes per Day (DWPD): 0.2

•SLC Write Cache: Yes

•Form Factor: M.2 2280 (Single-Sided)

•Interface: PCIe 3.0 x4

•Protocol: NVMe 1.3

•Name: BiCS5

•Type: TLC

•Technology: 112-layer

•Speed: 1066 MT/s

•Capacity: 4 chips @ 1 Tbit

•Toggle: 4.0

•Topology: Charge Trap

•Dies per Chip: 2 dies @ 512 Gbit

•Planes per Die: 2

•Word Lines: 128 per NAND String

•87.5% Vertical Efficiency

•Read Time (tR): 56 µs

•Program Time (tProg): 484 µs

•Die Read Speed: 571 MB/s

•Die Write Speed: 66 MB/s

•Page Size: 16 KB

•Block Size: 1344 Pages

•Plane Size: 448 Blocks

•Manufacturer: Phison

•Name: PS5012-E12S-32

•Architecture: ARM 32-bit Cortex-R5

•Core Count: Quad-Core

•Frequency: 667 MHz

•Foundry: TSMC

•Process: 12 nm

•Flash Channels: 8 @ 667 MT/s

•Chip Enables: 4

•Controller Features: DRAM

•TRIM: Yes

•SMART: Yes
