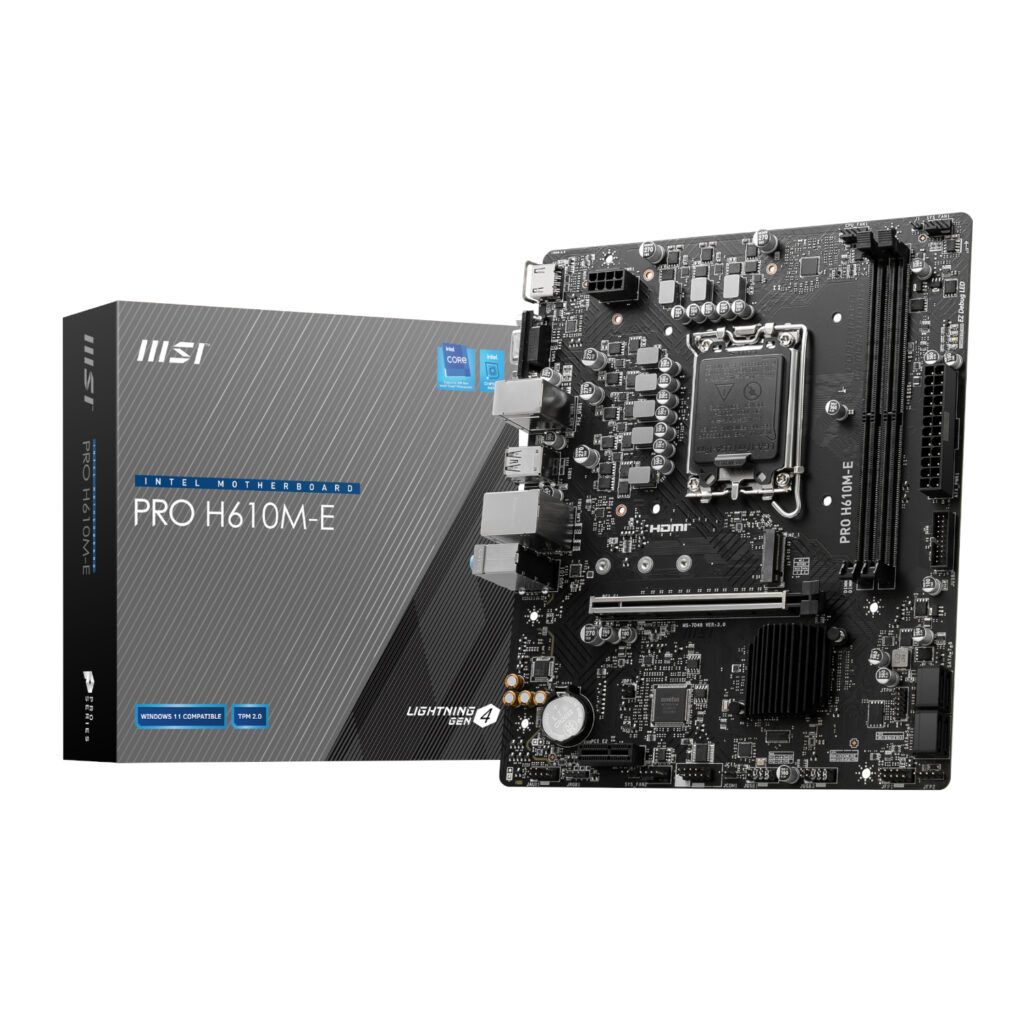

MSI PRO H610M-E Intel LGA1700 DDR5 M-ATX Motherboard

Quick Specs

• Supports 12th/13th Gen Intel Core processors for LGA 1700 socket, providing a future-proof platform
• Features DDR5 memory support, unlocking faster speeds and higher bandwidth for demanding applications
• Equipped with PCIe 4.0 slot, delivering lightning-fast data transfer speeds for modern GPUs and NVMe drives
• Integrated with Realtek Gigabit LAN, ensuring stable and reliable network connectivity for seamless online experiences
• Includes Audio Boost technology, providing studio-grade sound quality for immersive audio experiences

Unleash the Potential of Your 12th/13th Gen Intel CPU with an LGA 1700 Motherboard

Experience superior performance and reliability with the MSI PRO H610M-E DDR5 LGA 1700 Motherboard, designed to maximise the capabilities of your Intel LGA1700 processor. This mATX LGA 1700 motherboard is perfect for home and office use, offering a stable platform for demanding tasks.

Experience Lightning-Fast Connectivity

With PCIe 4.0 support, the MSI PRO H610M-E DDR5 LGA 1700 Motherboard ensures lightning-fast data transfer speeds for your graphics card and NVMe SSDs. Enjoy reduced loading times and smoother performance in games and applications, all powered by the latest technology.

Studio-Grade Audio Quality

Immerse yourself in high-fidelity audio with Audio Boost technology. Whether you are gaming, watching movies, or listening to music, this LGA 1700 motherboard delivers crystal-clear sound quality that enhances your overall experience, providing rich and detailed audio.

Built to Last with Steel Armor

The MSI PRO H610M-E DDR5 features Steel Armor, protecting your VGA cards from bending and electromagnetic interference (EMI). This robust design ensures better performance, stability, and strength, giving you peace of mind knowing your components are secure and performing at their best.

Optimised Memory Performance with Memory Boost

Benefit from advanced Memory Boost technology, delivering pure data signals for the best possible performance, stability, and compatibility. This feature ensures your DDR5 memory operates efficiently, providing a seamless and responsive computing experience.

FEATURES:

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
• Supports DDR5 Memory, up to 5600(MAX) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

SPECIFICATIONS:

• Chipset: INTEL H610
• CPU Support:
  • Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
  • LGA 1700
• Memory:
  • 2x DDR5, Maximum Memory Capacity 96GB
  • Memory Support DDR5 5600 MHz (by JEDEC & POR)
  • Supports Intel® XMP 3.0 OC
  • Supports Dual-Controller Dual-Channel mode
  • Supports non-ECC, un-buffered memory
• Onboard Graphics:
  • 1x HDMI™
  • Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
  • 1x VGA
  • Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
• Slot:
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
• Audio:
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
• Storage:
  • 1x M.2
  • M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G
• USB:
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
• LAN: Realtek® RTL8111H Gigabit LAN
• Internal IO:
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
• LED Feature: 4x EZ Debug LED
• Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor: mATX

WHAT’S IN THE BOX:

• MSI PRO H610M-E Intel LGA1700 DDR5 M-ATX Motherboard x1
• SATA Cable x1
• M.2 Screw/Standoff set x1
• I/O Shield x1
• Quick Installation Guide x1
