Name: Manhattan 5 Port Fast Ethernet Switch
Brand: Manhattan
SKU: EQ-="560672"
Price: 103.0 ZAR
Availability: InStock

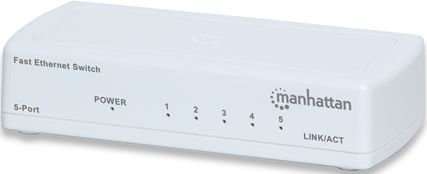

Manhattan 5 Port Fast Ethernet Switch

SKU EQ-="560672"

R103.00

In stock: 2 available

Quantity:

Product Details

Brand: Manhattan

Manhattan 5 Port Fast Ethernet Switch - 5 x 10/100 Mbps NWay switch ports, Supports Cat3, 4, 5 UTP/STP cables, Duplex modes on all ports up to 200 Mbps, Auto MDI/MDIX (Auto Uplink) on all ports, Store and forward switch technology architecture, External AC adapter 5V 0.6A, Packet filter/forward rates: 14,880 pps (10BaseT), 148,800 pps (100Base-TX), Standards IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3x Flow Control and Backpressure, Dimensions 97 x 45 x 23 mm, Operating temperature 0–40˚C, Humidity 10–90% non-condensing, Package includes 5-Port Fast Ethernet Switch, Power adapter, User manual,1 year Limited Warranty

Product Overview

The Manhattan 5-port Fast Ethernet Switch (560672) offers versatile connectivity with five 10/100 Mbps auto-sensing ports, supporting both 10BaseT and 100Base-TX standards. Its store-and-forward architecture and Auto MDI/MDX functionality ensure efficient data transfer and easy setup for various network devices. With support for IEEE 802.3x Flow Control and Backpressure, this compact switch provides reliable performance for small office or home network environments.

Features
• 5-port Fast Ethernet switch expands your network in an instant
• Easy plug-and-play installation — simply power it up and start using it
• Compatible with all Windows and Macintosh systems
• Five 10/100 auto-sensing ports automatically detect optimal network speeds
• Supports any combination of 10 Mbps or 100 Mbps network devices
• Ultra-compact design
• Fanless design ideal for silent operation
• Store and forward switching architecture

Specifications
• Ports: 5 10/100 Mbps NWay switch T ports
• Cable: Cat3, 4, 5 UTP/STP
• Duplex modes: all ports (up to 200 Mbps)
• Uplink: all ports Auto MDI/MDX (Auto Uplink)
• Switch architecture: store and forward switch technology
• External AC adapter: 5 V, 0.6 A

Filter/forward rate:
- 10BaseT: 14,880 pps (packets per second)
- 100Base-TX: 148,800 pps (packets per second)

Standards
• IEEE 802.3 10Base-T Ethernet
• IEEE 802.3u 100Base-TX Fast Ethernet
• IEEE802.3x Flow Control and Backpressure

Environmental
• Dimensions: 97 (W) x 45 (L) x 23 (H) mm (3.81 x 1.77 x 0.9 in.)
• Operating temperature: 0 – 40˚C (32 – 104˚F)
• Humidity: 10 – 90% (non-condensing)

Package Contents
• 5-Port Fast Ethernet Switch
• Power adapter
• User manual
