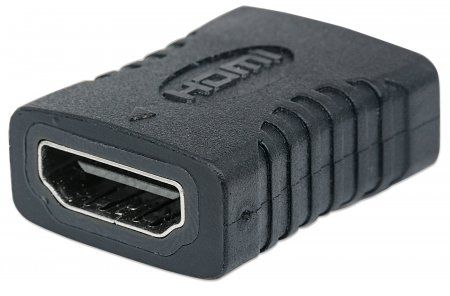

Manhattan HDMI Coupler

Easily connect two HDMI cables to work over greater distances.

Product overview
The Manhattan HDMI A female to A female, straight connection coupler adapter is ideal for joining two HDMI cables to give additional length to a cable, passively. This HDMI Coupler allows 4K resolution and a bandwidth of 10.2 Gbps at 340 MHz

Features
•Connects 2 HDMI cables
•Supports 4K resolution
•Straight, passive coupling connects 2 cables to overcome distance limitations
•Gold-plated contacts for best performance
•Intended for use with Manhattan HDMI cables

Specifications
•Bandwidth: 10.2 Gbps
•340 MHz
•Meets or exceeds existing HDMI standards
•Length: 3 cm (1.1 in.)

Connectors
•HDMI A female, 19-pin gold-plated
•HDMI A female, 19-pin gold-plated

Electrical
•Current rating: 0.5 ADC
•Withstanding voltage: 300 VDC
•Insulation resistance: 5 MΩ
•Conductive resistance: 2 Ω

General
•Length (overall): 28.5 x 11.2 x 22 mm (1.1 x 0.4 x 0.9 in.)
•Weight: 10 g (0.35 oz.)
•Moulded PVC

 Package Contents
•HDMI Adapter, A to A
