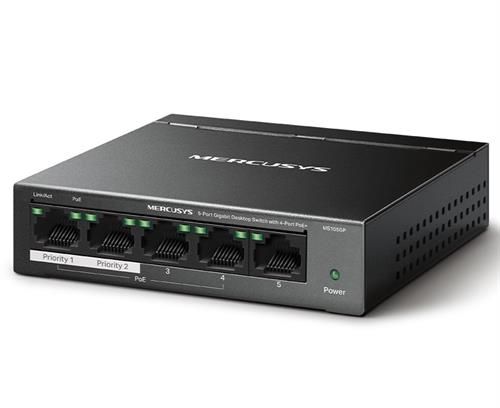

Mercusys MS105 5-Port Gigabit Desktop Switch
SKU EQ-="MS105GP"
R344.00
In stock: 1 available
1
Product Details
Brand: Mercusys
Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+ – 5GB RJ45 ports, with four PoE+ ports supporting up to 30W each and a total power budget of 65W. Supports data rates up to 2000 Mbps full duplex, jumbo frames up to 9 KB, and has a MAC address table of 2,000 entries. Durable metal case, plug and play operation, and options for desktop or wall mounting. Dimensions 99.8 x 98 x 25 mm. Operating temperature 0–40°C, humidity 10–90% RH non-condensing. Package includes power adapter and quick installation guide, Retail Box, 2 year Limited Warranty
Product Overview
Upgrade your network with the Mercusys MS105 5-Port Gigabit Desktop Switch, featuring five full Gigabit RJ45 ports for fast and reliable connectivity. With four PoE+ ports supporting up to 30W power each, along with extended transmission distance and isolation mode for stability and security, it offers efficient performance in a durable metal casing.
Specifications
-Product code: MS105GP
•Description: Mercusys MS105 5-Port Gigabit Desktop Switch
•Dimensions: 99.8*98*25mm
•PoE Ports : RJ45
•Standard: Compliant with 802.3 af/at Powered Devices
•PoE Ports: Port 1- Port 4
•PoE Power Budget: 65 W
•Interfaces : 5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
•External Power Supply : External Power Adapter (Output: 53.5V/1.31A)
•Installation : Desktop
•Wall Mount
•Standards and Protocols: IEEE 802.3x Flow Control
•Data Rates
•10/100/1000 Mbps at Half Duplex
•20/200/2000 Mbps at Full Duplex
•Jumbo Frame: 9 KB
•Mac Address Table : 2K
•Max Power Consumption: 3.13W（220 V / 50 Hz, no PD connected）
•75.15W（220 V / 50 Hz, with 65W PD connected）
•Max Heat Dissipation: 10.64 BTH/h （no PD connected)
•255.51 BTH/h（with 65W PD connected）
•5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)
•Quick Installation Guide
•Operating Temperature: 0℃~40℃ (32℉~104℉)
•Storage Temperature: -40℃~70℃ (-40℉~158℉)
•Operating Humidity: 10%~90% RH non-condensing
•Storage Humidity: 5%~95% RH non-condensing
•Description: Mercusys MS105 5-Port Gigabit Desktop Switch
•Dimensions: 99.8*98*25mm
•PoE Ports : RJ45
•Standard: Compliant with 802.3 af/at Powered Devices
•PoE Ports: Port 1- Port 4
•PoE Power Budget: 65 W
•Interfaces : 5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
•External Power Supply : External Power Adapter (Output: 53.5V/1.31A)
•Installation : Desktop
•Wall Mount
•Standards and Protocols: IEEE 802.3x Flow Control
•Data Rates
•10/100/1000 Mbps at Half Duplex
•20/200/2000 Mbps at Full Duplex
•Jumbo Frame: 9 KB
•Mac Address Table : 2K
•Max Power Consumption: 3.13W（220 V / 50 Hz, no PD connected）
•75.15W（220 V / 50 Hz, with 65W PD connected）
•Max Heat Dissipation: 10.64 BTH/h （no PD connected)
•255.51 BTH/h（with 65W PD connected）
•5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)
•Quick Installation Guide
•Operating Temperature: 0℃~40℃ (32℉~104℉)
•Storage Temperature: -40℃~70℃ (-40℉~158℉)
•Operating Humidity: 10%~90% RH non-condensing
•Storage Humidity: 5%~95% RH non-condensing
