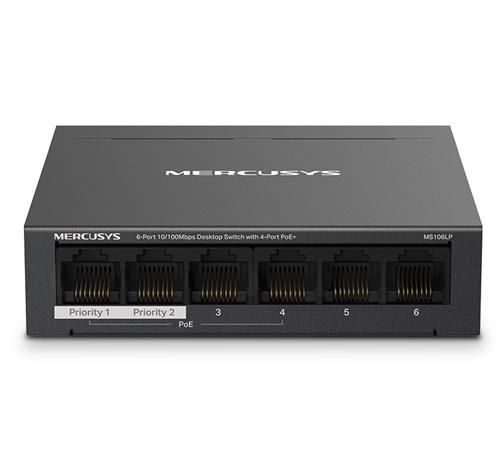

Name: Mercusys MS106LP 6-Port Desktop Switch
Brand: Mercusys
SKU: EQ-="MS106LP"
Price: 305.0 ZAR
Availability: InStock

Mercusys MS106LP 6-Port Desktop Switch

Product Details

Brand: Mercusys

Mercusys MS106LP 6-Port Desktop Switch with 4-Port PoE+ , Retail Box , 2 year Limited Warranty

Product Overview

The Mercusys MS106LP 6-Port Desktop Switch features six 10/100 Mbps RJ45 ports, including four PoE+ ports that deliver both data and power over a single cable, supporting up to 30 W per port. With an isolation mode for enhanced security and stability, it provides long-range PoE transmission up to 250 meters, making it ideal for various network setups.

Features

•6 Ports: 6× 10/100 Mbps RJ45 ports with 4 PoE+ ports

•Two Cables in One: With four PoE+ ports, transfers data and power on one single cable

•High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports*

•2× Uplink Ports: MS106LP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.

•Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

•Isolation Mode: One click to divide traffic for specific ports for stability and security

•Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

Specifications

•Product code: MS106LP

•Description: Mercusys MS106LP 6-Port Desktop Switch with 4-Port PoE+

•Dimensions 99.8*98*25mm

•PoE Ports

•RJ45

•Standard: Compliant with 802.3 af/at Powered Devices

•PoE Ports: Port 1- Port 4

•PoE Power Budget: 40 W

•Interfaces

•6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

•External Power Supply

•External Power Adapter (Output: 53.5V/0.81A)

•Standards and Protocols

•IEEE 802.3x Flow Control

•Data Rates

•10/100 Mbps at Half Duplex

•20/200 Mbps at Full Duplex

•Jumbo Frame

•2 KB

•Mac Address Table

•2K

•Max Power Consumption

•1.87W（220 V / 50 Hz, no PD connected）

•44.8W（220 V / 50 Hz, with 40W PD connected）

•Max Heat Dissipation

•6.34 BTH/h （no PD connected)
