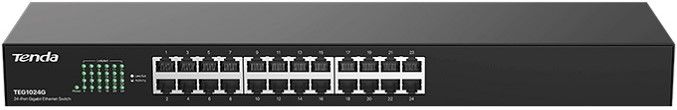

Tenda 24-Port Gigabit Ethernet Switch

TEG1024G is a 24-port gigabit Ethernet switch independently designed by Tenda. The switch supports wire-speed forwarding of all ports to ensure smooth transmission of large files and video streaming. It features a compact metal body, and supports desktop, wall and rack mounting. As a flexible and simple-to-use device, it can be connected to such network devices as computers and network cameras

Product Overview

The switch features 24 gigabit RJ45 ports delivering high-speed, low-latency performance ideal for seamless large file transfers and stable video streaming in diverse networking environments. Powered by advanced chips, it ensures efficient data processing, stable operation, and easy setup with support for desktop, wall, and rack mounting. Compliant with multiple network standards, it offers robust protection, energy-efficient operation, and versatile deployment options suitable for office and enterprise networks.

Features

•Plug and play for easy networking
•With 19-inch body design,support desktop,wall and rack mounting
•24 Gigabit Auto-Negotiation RJ45 ports

Specifications

•Product Code: TE-TEG1024G
•Description: Tenda 24-Port Gigabit Ethernet Switch
Network standards
•IEEE 802.3
•IEEE 802.3u
•IEEE 802.3x
•IEEE 802.3ab
LED Indicator
•Power
•Link/Act
•Interfaces: (24) 1GE RJ45 ports
•Transmission media: Recommended: CAT5/5e UTP or better
•Dimensions: 440mm*120mm*44mm
•Material: Metal
Level of protection
•Port: 6 KV
•Power：4 KV
•Forwarding mode: Store-and-forward
•Switch capacity: 48Gbps
•Forwarding rate: 35.7Mpps
•Buffer: 4Mb
•MAC address table: 8K
•Power method: 100-240V AC 50/60Hz
•Power consumption: Max:<12W
Mounting
•Rack mounting
•Desktop mounting
•Wall mounting
Environment
•Operating Temperature: 0℃~45℃
•Storage Temperature: -40℃~70℃
•Operating Humidity: 10%~90% non-condensing
•Storage Humidity: 5%~90% non-condensing
•Certifications: FCC, CE, RoHS
