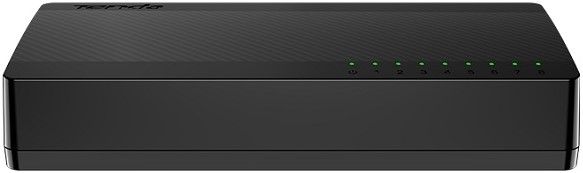

Tenda 8Port Gigabit Ethernet Switch

Tenda 8-Port Gigabit Ethernet Switch (TE-SG108) is designed to offer high-speed and stable network connectivity for both small office and home environments. With eight 10/100/1000 Mbps auto-negotiation ports, this switch enables seamless data transfer, ideal for streaming, gaming, and large file transfers.

Product Overview

This compact 8-port Gigabit Ethernet switch delivers up to 2000 Mbps full-duplex transmission with enterprise-level circuit design to prevent network jams and ensure zero packet loss. Featuring store-and-forward switching, auto MDI/MDIX ports, and robust ESD protection, it provides stable 24/7 operation for both home and business environments. Easy plug-and-play setup with desktop and wall mounting support makes it ideal for connecting a variety of devices including surveillance cameras, smart TVs, and computers.

Features

•8× Gigabit Ethernet auto-negotiation ports
•Plug and play, no configuration required
•Fanless and silent operation
•Durable metal housing for better heat dissipation
•Supports IEEE 802.3, 802.3u, and 802.3ab standards
•Auto MDI/MDIX and flow control support
•Compact and energy-efficient design

Specifications

•Product Code: TE-SG108
•Description: Tenda 8-Port Gigabit Ethernet Switch
Network standards
•IEEE802.3
•IEEE802.3u
•IEEE802.3x
•IEEE802.3ab
LED Indicator
•1 * Power
•8 * Link/Act
•Interfaces 8*10/100/1000 Base-T Ethernet ports(Auto MDI/MDIX)
•Transmission media Recommended: CAT5/5e UTP or better
•Dimension 124mm*59mm*23mm
•Material Plastic
•Level of protection ESD:
•Air discharge: `b18kV
•Contact discharge: `b16kV
•Forwarding mode Store-and-forward
•Switch capacity 16Gbps
•Packet forwarding rate 12.00Mpps
•Buffer 4Mb
•MAC address table 8K
•Power Input: 100-240V AC 50/60Hz
•Output: 5V 0.6A (External power adapter)
•Power consumption Max:<3W
Mounting
•Desktop mounting: support
•Wall mounting: support
•Rack mounting:non-support
Environment
•Operating temperature: 0`b0C – 45℃
•Storage temperature: -40`b0C – 70`b0C
•Operating humidity: (10% – 90%) RH, non-condensing
•Storage humidity: (5% – 90%) RH, non-condensing
•Certification CE, FCC, RoHS
•Protocols CDMA/CD
•MAC address learning Auto-Learning and Auto-Aging
