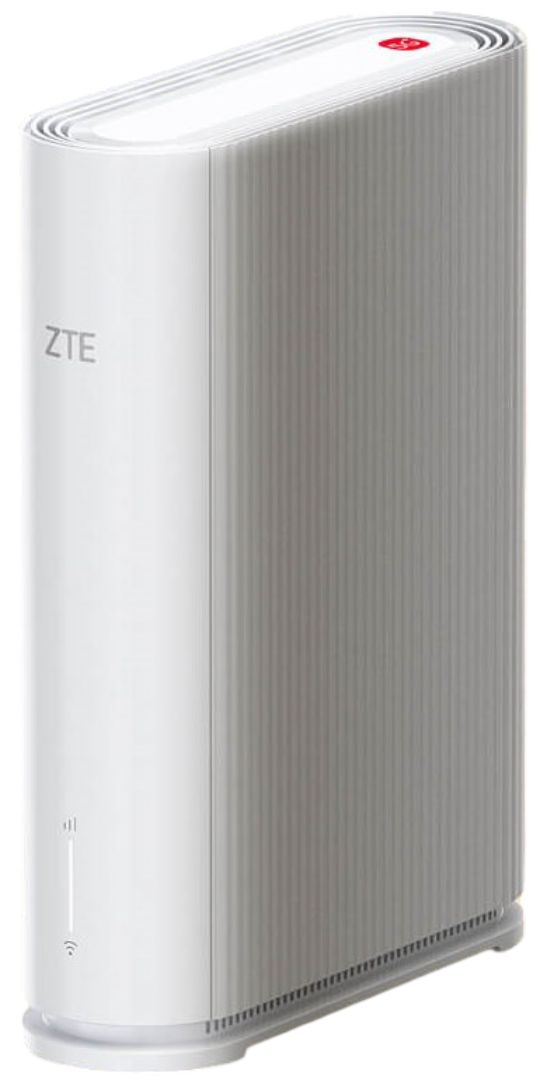

ZTE G5TS 5G MODEM WHITE

Platform ZTE S1 5G modem Network NSA&SA, R16 5G NR+LTE EN-DC - global 5G NR band 4G LTE Global FDD and TDD 600MHz~3.8GHz MIMO 4 x 4 MIMO on high and mid band Bandwidth DL up to 2CC 200MHz and UL up to 1CC 100MHz Modulation DL 256QAM and UL 256QAM Wi-Fi Wi-Fi 6, 802.11b/g/n/ac/ax, 2.4G&5G, dual band 2 x 2 MIMO, up to 1500Mbps Up to 64 users Interface 4 x RJ45 GE port: 3 x LAN + 1 x WAN/LAN 1 x RJ11 VoLTE, VoNR 2 x TS-9 External Antenna Ports Indicator&Button LED: network, Wi-Fi(Power) Button: WPS button and reset hole Size 200 x 150x 53mm Features APP, WebUI, FOTA/TR069(Customized) Firewall, IPV6/V4

Product Overview

The ZTE S1 5G modem is a high-performance network device supporting both NSA and SA 5G modes with 3GPP Release 16 standards, offering global coverage across 4G LTE and 5G NR bands from 600MHz to 3.8GHz. It features advanced 4x4 MIMO on high and mid bands, bandwidth aggregation up to 200MHz DL and 100MHz UL, and supports high-order modulation (256QAM) for enhanced throughput. The modem also integrates Wi-Fi 6 dual-band (2.4G & 5G) with 2x2 MIMO up to 1500Mbps, multiple RJ45 ports, and VoLTE/VoNR capabilities, making it suitable for robust and flexible connectivity in home or business environments.

Features

3GPP Release 16 & NR-CA Technology
•Embrace 5G standards with 3GPP R16 and NR-CA (New Radio Carrier Aggregation), dynamically combining multiple carriers for high - speed network. Perfect for HD streaming, remote work, and smart home applications.
11 Omnidirectional Antennas for 360° Coverage
•Equipped with 11 high-gain antennas to eliminate dead zones and ensure stable, seamless connectivity across all frequencies, provide rock - solid multi - device connectivity, and thereby unlock the full potential of 5G/WiFi 6 performance.
26dBm Transmit Power for Superior Signal Penetration
•Delivers robust signal strength (up to 26dBm*) to overcome walls and obstacles, optimized for n41/n78 frequency bands.
Wi-Fi 6 for 64 Connected Devices
•Experience ultra-low latency and blazing-fast speeds with Wi-Fi 6, supporting up to 64 devices simultaneously for lag-free gaming, streaming, and IoT connectivity.
4 Gigabit Ethernet Ports for Wired Stability
•4 Gigabit LAN ports offering wired connections that shield against external interference, ideal for high-bandwidth tasks like 4K video conferencing and data-intensive workflows.
5G + Wired Dual-Network Backup
•Seamlessly switch between 5G and wired broadband to minimize downtime, prioritizing security and stability for mission-critical applications.
NFC Tap-to-Connect*
•When connecting to a mobile Wi-Fi device, NFC skips the cumbersome manual device search and password input of traditional Bluetooth. Just hold the phone near the device to connect, saving time and steps. It's also compatible with Android phones, tablets, etc.

Specifications

•Product Code: ZTE-G5TS
•Description: ZTE G5TS 5G CPE
Network
•5G R16: n1/n3/n7/n8/n20/28/n38/n40/41/75/n77/n78
•FDD-LTE: B1/B3/B7/B8/B20/B28
•TDD-LTE: B32/B38/B40/B41/B42/B43
•MIMO: 4 x 4 MIMO on Mid and High band
•Bandwidth: DL 140MHz and UL 100MHz
•Modulation: DL 256QAM and UL 256QAM
•Wi-Fi: Wi-Fi 6, 802.11b/g/n/ac/ax, 2.4G&5G, dual band 2 x 2 MIMO, up to 1500Mbps, UP to 64 users
Interface:
•4 x RJ45 GE port: 3 X LAN+1 x WAN/LAN
•1 x RJ11 VoLTE, VoNR
•2 x TS-9 External Antenna Ports
Indicator & Button:
•LED: network, Wi-Fi(power)
•Button: WPS button and reset hole
•Dimension: 150(L)*53(D)*200(H)mm
•Features: APP, WebUI, FOTA/TR069(Customized), Firewall, IPV6/V4
